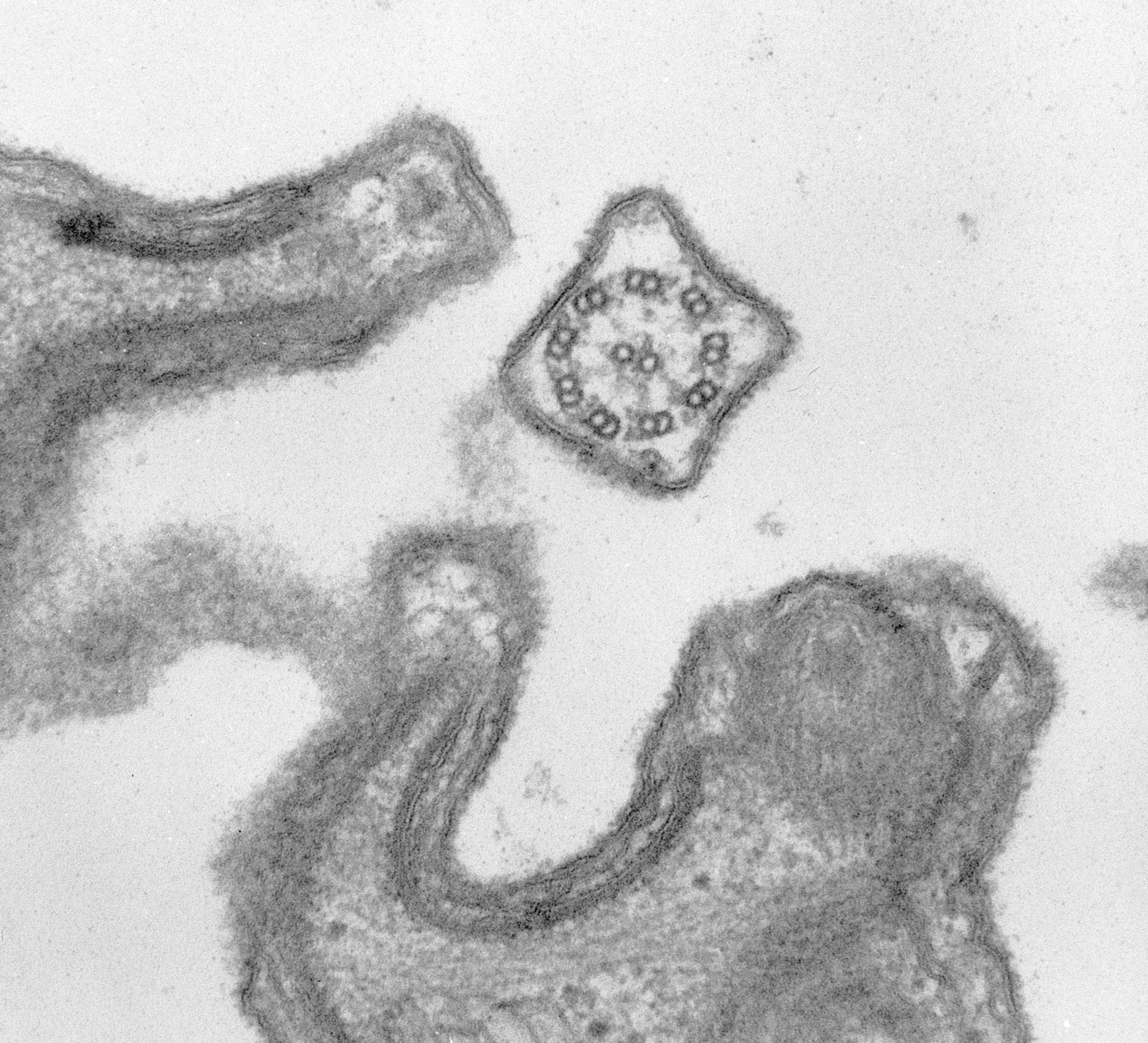

Cross section of a cilium showing the 9 + 2 axoneme. Two dynein arms, inner and outer, of heterogeneous appearance arise from the complete microtubule of each doublet. Spokes extend from the doublets toward the central pair. Other densities extend from the central pair and between some of the outer doublets and the membrane. A heavy glycocalyx (polysaccharide coat) is found on the outside of the ciliary membrane as well as the plasma membrane. TEM taken on 2/3/69 by R. Allen with Philips 300 operating at 60kV. Neg. 47,100X.
Biological Process: Ciliary or flagellar motility, Plasma membrane organization
Standard glutaraldehyde fixation followed by osmium tetroxide, dehydrated in alcohol and embedded in an epoxy resin. Microtome sections prepared at approximately 75nm thickness. The raw negative was scanned with an Epson Perfection V750 Pro and this high resolution image is best used for quantitative analysis. Additional information available at (http://www5.pbrc.hawaii.edu/allen/).
Author: Richard Allen (University of Hawaii)
Source: The Cell: An Image Library
